Introduction:

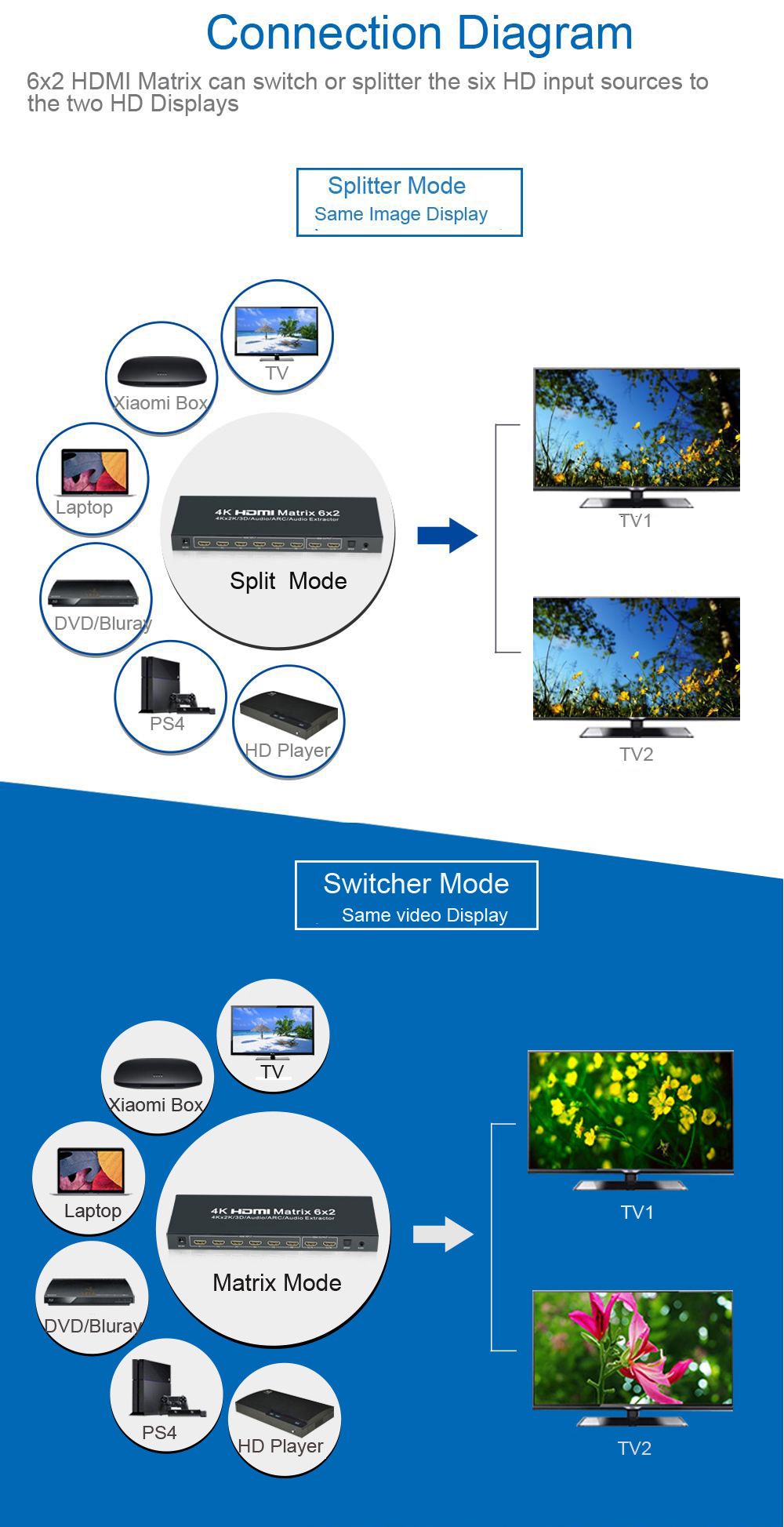

The HDMI 6x2 Matrix can connect Six HD Source with two HD Display,which can also do extra audio output by the SPDIF port or Headphone port.It can switch or distribute the Six HD Source to the two HD Display easily. The matrix also can support ARC function,which can upstream the TV audio to the amplifier.

Our devices offer solutions for noise, space and security concerns, data center control,information distribution, conference room presentation,school and corporate training environments.

FEATURES:

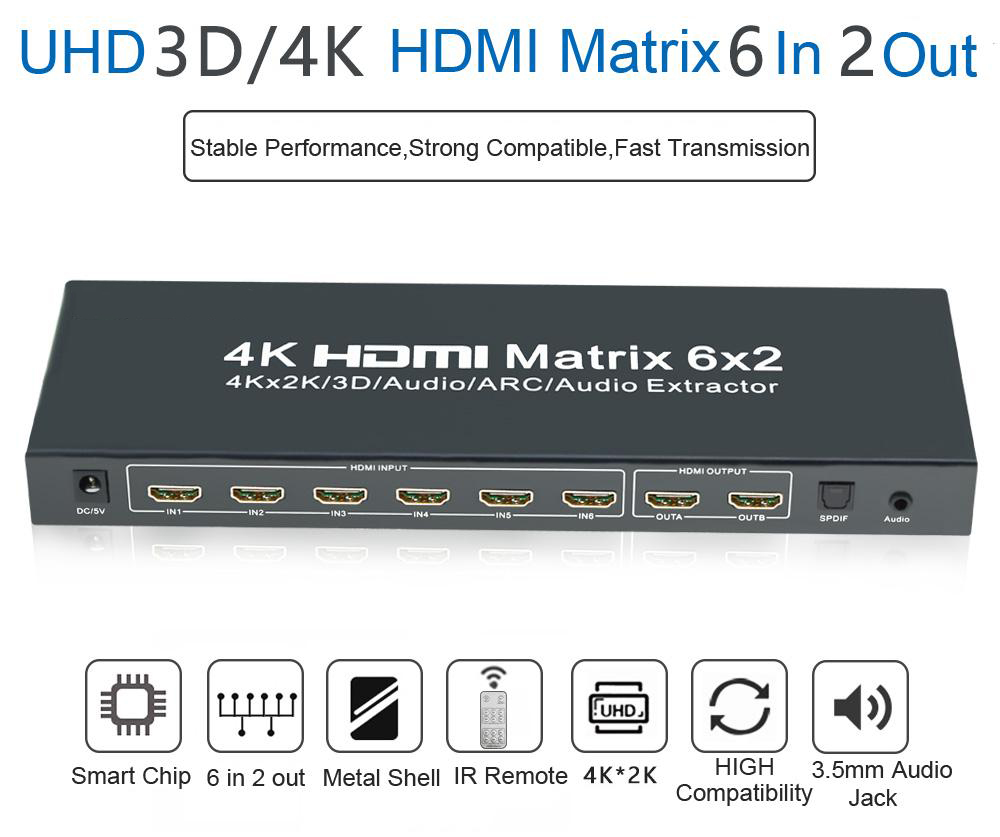

* Six HDMI Inputs switch or split to two HD Displays.
* HDMI supports Full HD,3D and 4Kx2K video
* Any input HD Source can do audio extract by the SPDIF or 3.5mm Headphone audio output port.
* HDMI to achieve the synchronization of audio signal separation.
* Support 2.0/ 5.1/ ADV three kinds of audio mode options

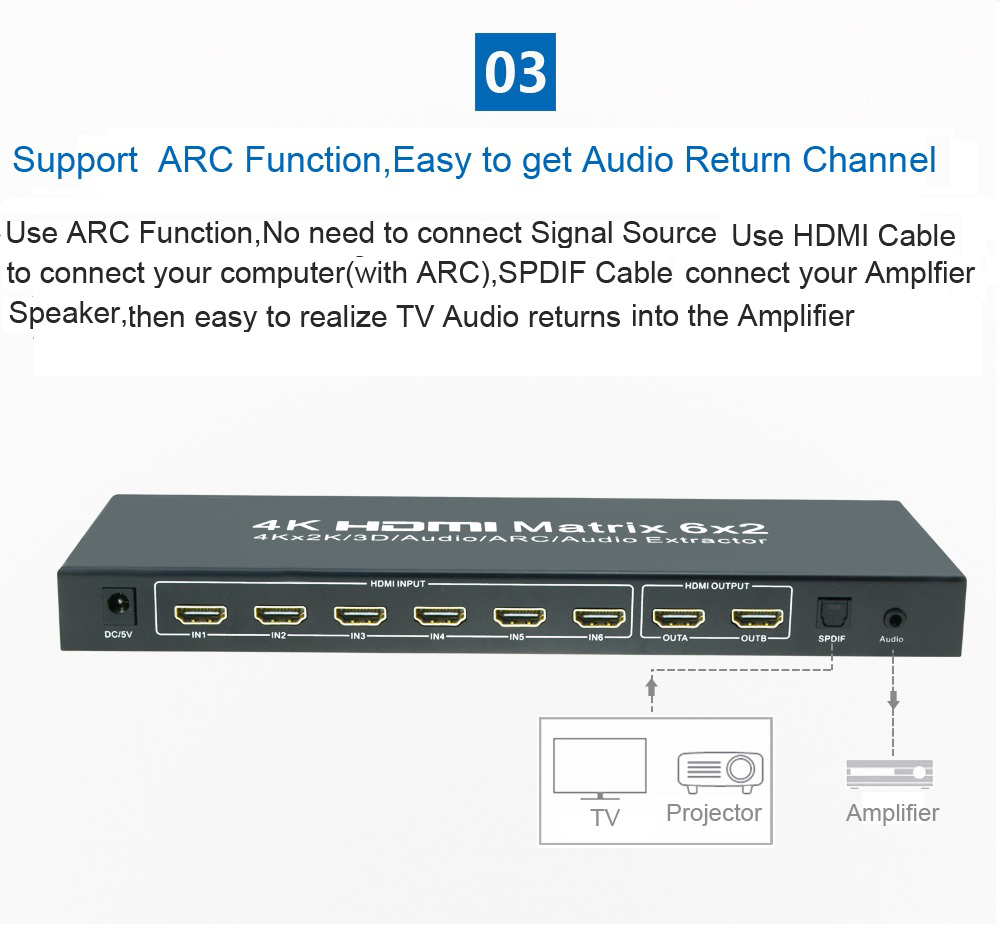

* Supports ARC ,TV audio will return and out by the Optical Port;(only the OUT A port supports ARC function).
* Supports HDMI audio separation, can output by optical and 3.5mm Headphone at the same time
* Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0

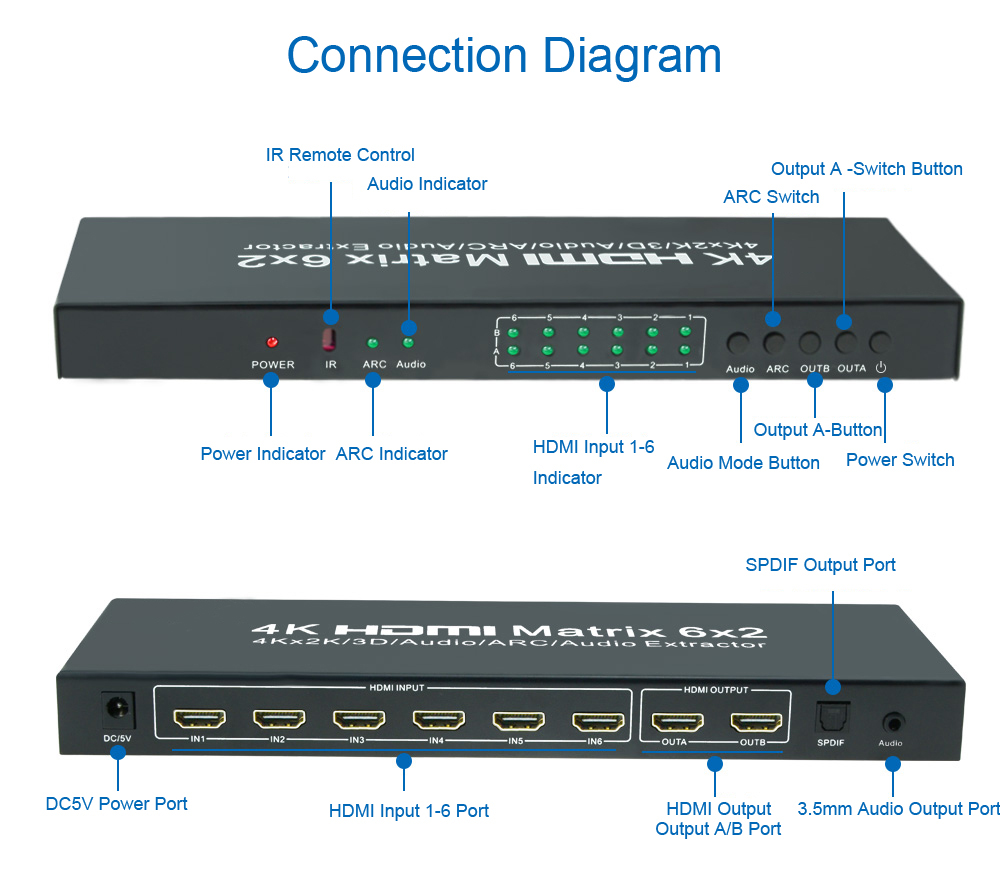

* LED indication: when source or sink is working, LED related will go bright.

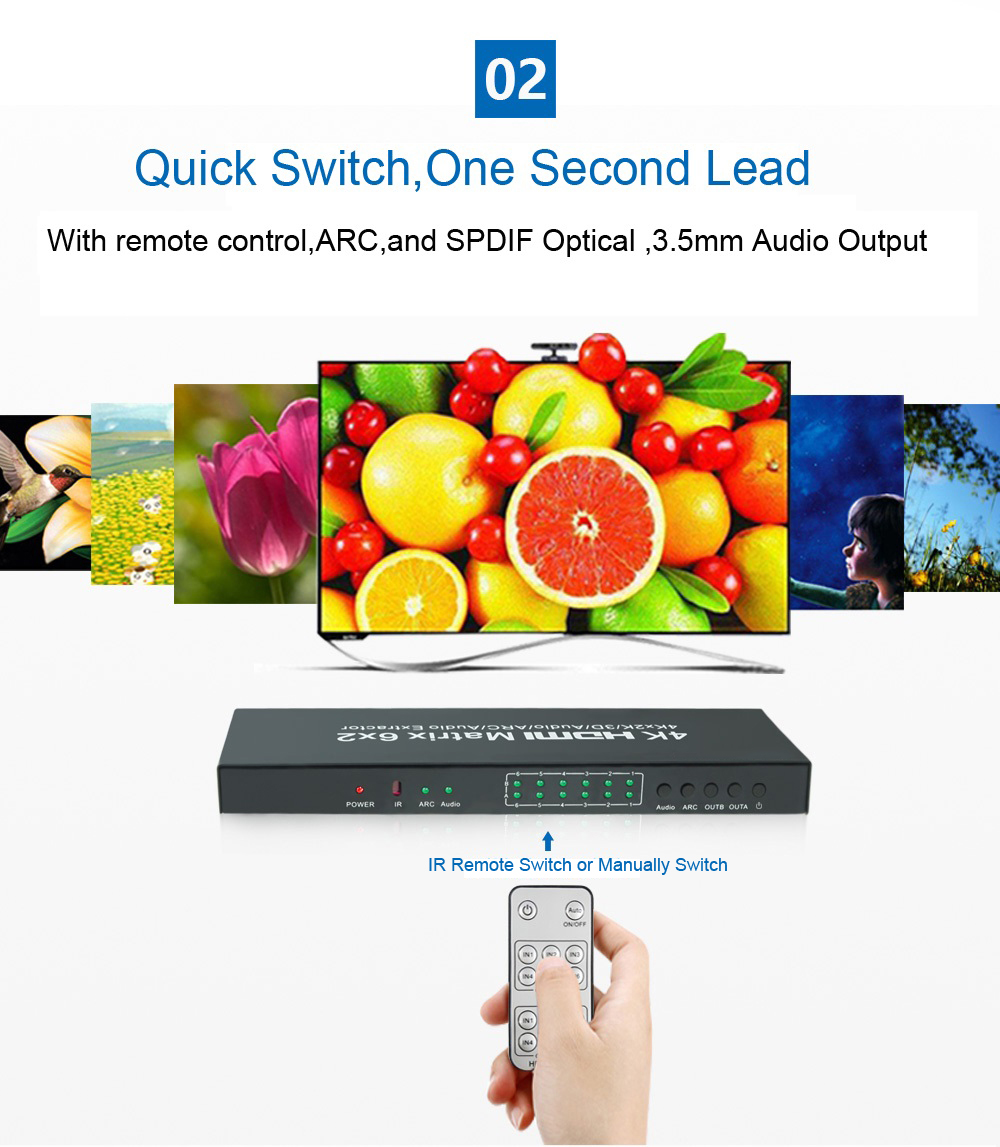

* Support IR Remote Control and Push Button at device control.
* Led Status Light allows the user to know the working status easily.
* Power-off memory
* No loss of quality
* Need DC5V/2A power supply


Package list：
HDMI Matrix 6x2     1pc
5V power adapter    1pcs
IR Remote              1pcs
User manual          1pcs
